AGV car is equipped with electromagnetic or optical automatic guiding device, such as guided by the move to routes, which has the function of security protection and a variety of transfer truck, industrial applications don't need to be in the driver's truck.Generally through the computer to control the route and behavior, or using the electromagnetic rail (electromagnetic path - following system) to set up the path, electromagnetic rail taped to the floor, AGV is rely on information brought by the electromagnetic rail for mobile and action, with the development of the society, AGV is more and more widely used, warehousing, manufacturing, and the post office, chemicals, dangerous situations, have been widely used.

Especially in the automotive field.This product main function is to provide power for AGV car energy, power battery with circulating cycle count, low self-discharge rate, service life is long, deep discharge capability, high charging efficiency, power is strong, earthquake resistant capability is strong, the advantage of less maintenance or free maintenance and so on.Advantages: small volume, light weight, long life, high efficiency, deep charge and discharge, intelligent management, provide reliable and high quality power energy for your system.

In the application of environmental applications, it is outdoors in a room.

Working temperature/humidity - 20 ~ 60 ℃;40 ~ 60% RH

Storage temperature/humidity - 20 ~ 60 ℃;50 ~ 70% RH

Special performance charging high charge and discharge in low temperature 0 ~ 45 ℃;- 20 ~ 60 ℃ discharge.

Other warranty period is 1 year.

Explosion-proof grade /

Waterproof grade /

Dust level /

Fall times /

The working voltage range of electric power is 16V ~ 29.2v.

Battery capacity 38.4mAh.

Working hours 2 hours.

Battery size: 350*240*120mm.

Normal working current 20A.

Short circuit protection

Start current start current 60A.

Maximum continuous working current 30A.

Use frequency and time daily.

Electric quantity management communication mode.

Type of product certification and environmental protection requirements.

Mind UL2054 UL60950

Mind un38.3 RCM

KC/PSE /

The parts show the BIS.

Mind BMSI and REACH

This is a battery instruction.

No other halogen:

Scheme design battery specification 26650/8s12p /38.4Ah/ 25.6v.

Electric core model 26650/3200mah /3.2V.

Protection board and hardware configuration IC S8261.

MOS AO/IR

PTC without

The NTC has no

Other BQ34Z100 voltmeters.

Encapsulation form: basic protection class: PVC+ non-basic protection class, shell + basic protection class, shell + non-basic protection class.

The main parameter is nominal voltage 25.6v.

Nominal capacity 38.4Ah.

Battery size: 350*240*120mm.

Battery internal resistance ? 100 m or less

The battery weighs 9.75KG.

Charging current 15A

Continuous discharge current 20.0A.

Protection current 60.0A.

Charging voltage 29.2v.

Discharge cut-off voltage 16V.

The charging and discharging conditions of the service life are 0.5C and 0.5C, or more than 1000 times.

Charging temperature 0 ~ 45 ℃

Discharge temperature - 20 ~ 60 ℃

Storage temperature - 20 ~ 30 ℃ (less than 6 months)

To protect / + / ℃ temperature

Main features 1. Intelligent management with I2C communication.

2. Large current charging.

3, charging and discharging process of 55 ℃ to 65 ℃ temperature protection

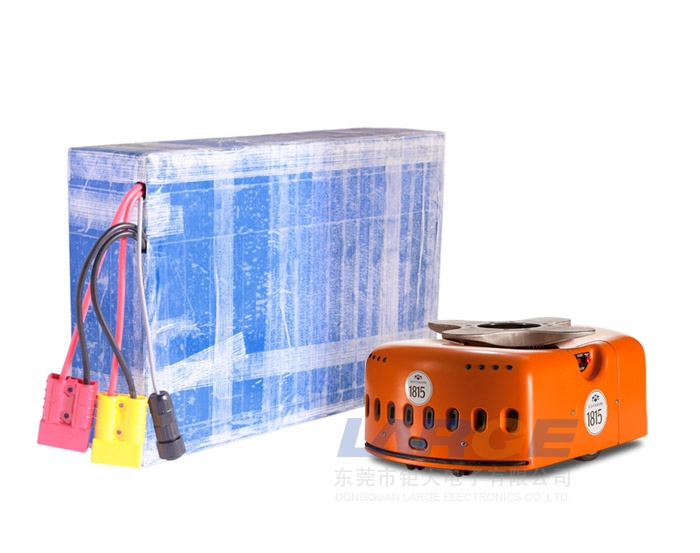

Picture 1. JPG.
